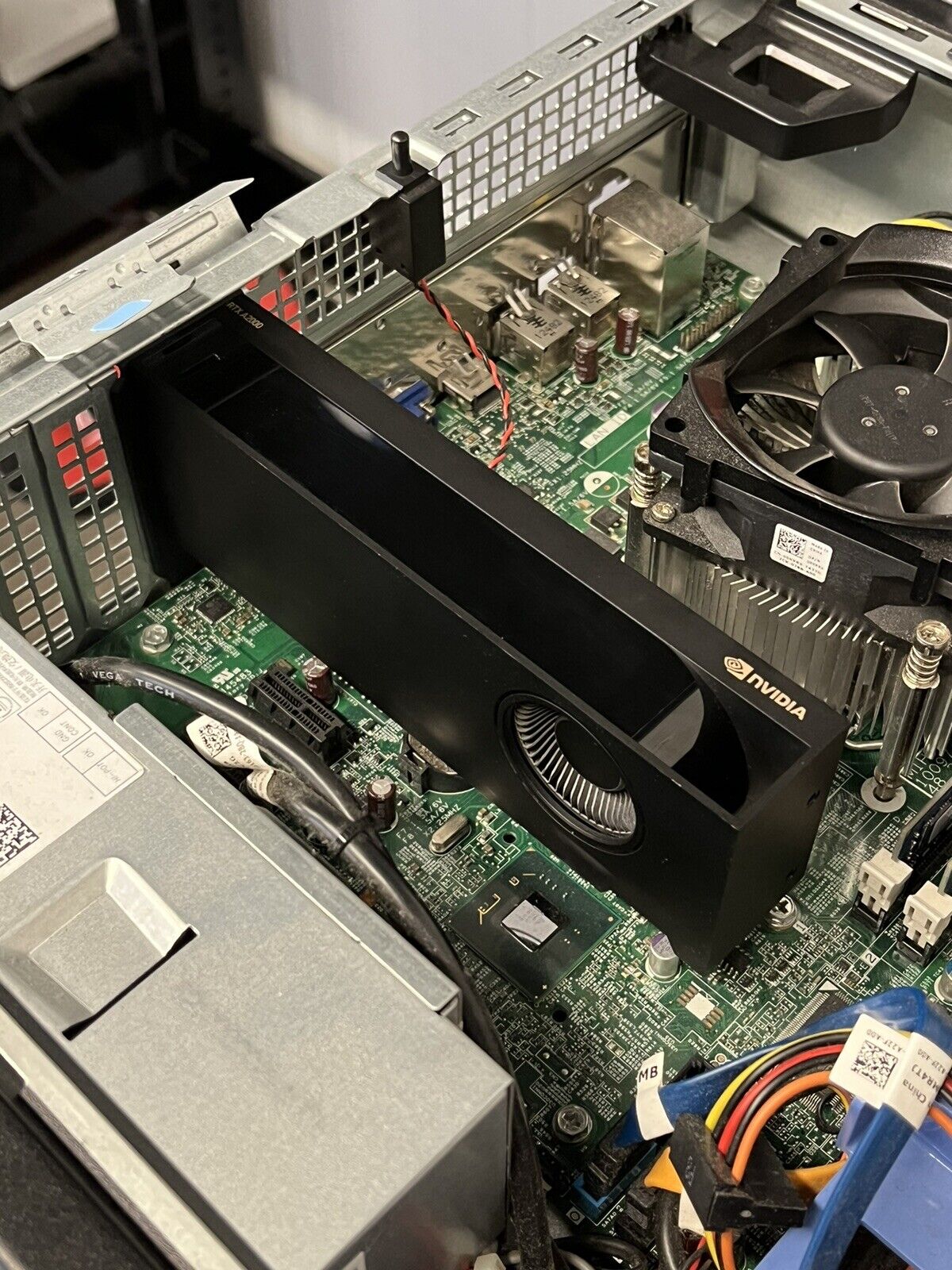

Low Profile Bracket - RTX A2000 - 3D Printed ASA Filament

Features and further details

• Details: This is a custom made Low Profile Bracket based on the original RTX A2000 Low Profile Bracket. I made 2 variations with an open and a grid design. The open design can improve air flow for the card, in theory making the card run cooler. The grid design is a 1 for 1 design copy of the original bracket. I test the warp temp of the bracket and I tested to 65-70C and no warpage was noticed. The glass transition temperature of the ASA is 95C so it should work great.
• Setup: First remove the full size bracket with 2 screws on the front and 2 on the side. These are two different hex screw sizes. Remove the bracket and put back the side screws. My bracket doesn't use the side screws as it didn't work with the 3D printed bracket. Place the small gasket on the card and next place the main bracket on top. The gasket fills in the gaps. Carefully tighten the main screws. Make sure everything lines up correctly before fully tightening. And you should be good to go.
• Package Includes: The bracket of your choice and the gasket. Also comes with a manual for installation.
